TECHNICAL INFORMATION
Flanges Dimensions
Flanges Dimensions
| Normal pipe size |
Outside dia. of flange |
Minimum thickness of flange |
Overall Length | Bolt Circle |
No. and Size of Holes |
O.D. of raised face |
|||

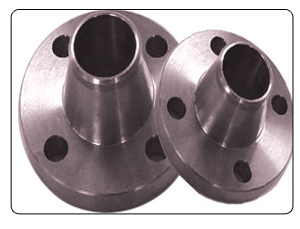

| Welding neck |
Slip-on & socket welding |
Lap Joint |
|||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 12.1 | 22.3 | 60.3 | 31.8 | 31.8 | 82.5 | 4 | 22 | 35 |
| 3/4 | 130 | 25.4 | 69.8 | 34.9 | 34.9 | 89.0 | 4 | 22 | 43 |
| 1 | 149 | 28.6 | 73.0 | 41.3 | 41.3 | 101.5 | 4 | 25 | 51 |
| 1-1/4 | 159 | 28.6 | 73.0 | 41.3 | 41.3 | 111.0 | 4 | 25 | 64 |
| 1-1/2 | 178 | 31.8 | 82.6 | 44.4 | 44.4 | 124.0 | 4 | 29 | 73 |
| 2 | 216 | 38.1 | 101.6 | 57.2 | 57.2 | 165.0 | 8 | 25 | 92 |
| 2-1/2 | 244 | 41.3 | 104.8 | 63.5 | 63.5 | 190.5 | 8 | 29 | 105 |
| 3 | 267 | 47.7 | 117.5 | 73.0 | 73.0 | 203.0 | 8 | 32 | 127 |
| 3-1/2 | |||||||||
| 4 | 311 | 54.0 | 123.8 | 90.5 | 90.5 | 241.5 | 8 | 35 | 157 |
| 5 | 375 | 73.1 | 155.5 | 104.8 | 104.8 | 292.0 | 8 | 41 | 186 |
| 6 | 394 | 82.6 | 171.4 | 119.1 | 119.1 | 317.5 | 12 | 38 | 216 |
| 8 | 483 | 92.1 | 212.7 | 142.9 | 142.9 | 393.5 | 12 | 45 | 270 |
| 10 | 584 | 108.0 | 254.0 | 158.8 | 177.8 | 482.5 | 12 | 51 | 324 |
| 12 | 673 | 123.9 | 282.9 | 181.0 | 219.1 | 571.5 | 16 | 54 | 381 |
| 14 | 749 | 133.4 | 298.4 | ----- | 241.3 | 635.0 | 16 | 60 | 413 |
| 16 | 826 | 146.1 | 311.2 | ----- | 260.4 | 705.0 | 16 | 51 | 470 |
| 18 | 914 | 162.0 | 327.0 | ------ | 276.2 | 474.5 | 16 | 73 | 538 |
| 20 | 984 | 117.8 | 355.4 | ----- | 292.1 | 832.0 | 16 | 80 | 584 |
| 24 | 1168 | 203.2 | 406.4 | ----- | 330.2 | 990.5 | 16 | 92 | 692 |
