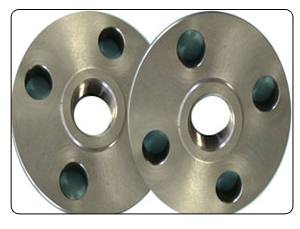

Flanges Dimensions
Flanges Dimensions
| Normal pipe size |
Outside dia. of flange |
Minimum thickness of flange |
Overall Length | Bolt Circle |
No. and Size of Holes |
O.D. of raised face |
|||
| Welding neck |
Slip-on & socket welding |
Lap Joint | |||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 95 | 14.3 | 52.4 | 22.2 | 22.2 | 666.5 | 4 | 15 | 35 |
| 3/4 | 117 | 15.9 | 57.2 | 25.4 | 25.4 | 82.4 | 4 | 19 | 43 |
| 1 | 124 | 17.5 | 61.9 | 27.0 | 27.0 | 89.0 | 4 | 19 | 51 |
| 1-1/4 | 133 | 19.1 | 65.1 | 27.0 | 27.0 | 98.5 | 4 | 19 | 64 |
| 1-1/2 | 156 | 20.7 | 68.3 | 30.2 | 30.2 | 114.5 | 4 | 22 | 73 |
| 2 | 165 | 22.3 | 69.8 | 33.3 | 33.3 | 127.0 | 8 | 19 | 92 |
| 2-1/2 | 190 | 25.4 | 76.2 | 38.1 | 38.1 | 149.0 | 8 | 22 | 105 |
| 3 | 210 | 28.6 | 79.4 | 42.9 | 42.9 | 168.0 | 8 | 22 | 127 |
| 4 | 254 | 318 | 85.7 | 47.6 | 47.6 | 200.0 | 8 | 22 | 157 |
| 5 | 279 | 35.0 | 98.4 | 50.8 | 50.8 | 235.0 | 8 | 22 | 186 |
| 6 | 313 | 36.6 | 98.4 | 52.4 | 52.4 | 270.0 | 12 | 22 | 216 |
| 6 | 381 | 413 | 111.1 | 61.9 | 91.9 | 330.0 | 12 | 25 | 270 |
| 10 | 444 | 47.7 | 117.5 | 66.7 | 95.3 | 387.5 | 16 | 29 | 324 |
| 12 | 521 | 50.8 | 130.2 | 73.0 | 101.6 | 451.0 | 16 | 32 | 381 |
| 14 | 584 | 54.0 | 142.9 | 76.2 | 111.1 | 514.5 | 20 | 32 | 413 |
| 16 | 648 | 57.2 | 146.0 | 82.6 | 120.7 | 571.5 | 20 | 35 | 470 |
| 18 | 711 | 60.4 | 158.8 | 88.9 | 130.2 | 628.5 | 24 | 35 | 533 |
| 20 | 775 | 63.5 | 161.9 | 95.2 | 139.7 | 686.0 | 24 | 35 | 584 |
| 24 | 914 | 69.9 | 168.3 | 106.4 | 152.4 | 843.0 | 24 | 41 | 692 |
